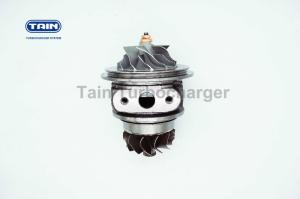

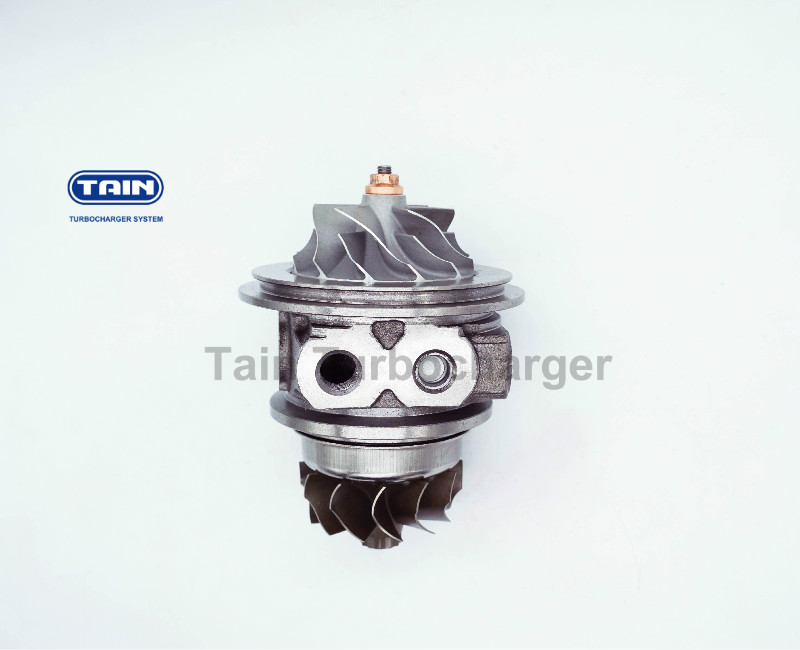

Turbochrager Chra 49189-01330 1515A054 850R

Brand Name : Tain turbo

Model Number : TD04HL-16T

Certification : ISO9001:2000

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, D/P

Supply Ability : 500 pcs per month

Delivery Time : 3-5 work days

Packaging Details : Neutral Packing

Product : Turbocharger Chra

Model : TD04HL-16T

Turbo No. : 49189-01330 , 49189-01335 , 49189-01350 , 49189-01355 ,49189-05101

Chra No. : 49189-08535

Application : 850R /S70R / V70R/ T5 / V70AWD 2.3L

Engine CODE : B5234 HT T3/T5/T6 N2P23HT

ENGINE NO. : 1270536 ,MR340962,8601238 , MR340961,8601226,1515A054

Contact Now

Turbochrager Chra 49189-01330 1515A054 850R

DESCRIPTION

—— Model : TD04HL-16T

—— Turbo No. :

49189-01330 49189-01335 49189-01350 49189-01355

49189-01450 49189-01455 49189-05000 49189-05010

49189-05100 49189-05101 49189-05102 49189-05111

49189-05112

—— Chra No.:

49189-08535

—— OE No.:

1270536 ,MR340962,8601238 , MR340961,8601226,1515A054

—— Balancing Test :

<0.5Mg.mm / 150000RPM

—— Condition:

Brand new

—— Fitted Cars :

850R /S70R / V70R/ T5 / V70AWD 2.3L B5234 HT T3/T5/T6 N2P23HT

——Turbine wheels & compressor wheels size information

Turbine Wheels
(A) Inducer (B) Exducer Blades
52.1 45.65 12
CompressorWheels
(A) Inducer (B) Exducer Blades
43.4 56 6/6

—— Material

turbine wheel: K418

compressor wheel: C355

bearing house: HT250 Gray iron

Turbochrager Chra 49189-01330 1515A054 850R

OTHER MODELS WE SUPPLY

Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.

Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.

Model cover :

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset:

HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,

MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035

Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26

TIAN TECHNICIAL TEAM

Our technical team was composed by one advanced engineer with 15 years experience engineers and four engineers who are very professional in this field. They are familiar with turbocharger system and product structure and dimension.

They are mainly responsible for source selection,quality control,dimension inspection and product development.Thanks to them,currently we can supply over 300 types of turbochras and always keep our products quality in a high level.
